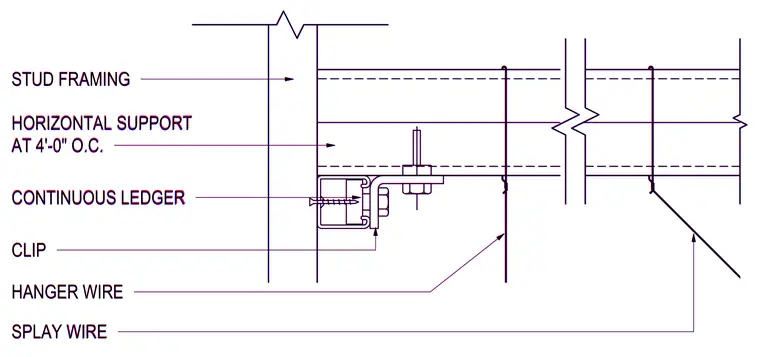

The assembly consists of stud framing anchored with a continuous ledger, supporting a horizontal support spaced at four feet on center. A metal clip secures the framing components together. Hanger wires and splayed wires stabilize the overhead framing system.
SPLAY WIRE HANGER WIRE CLIP CONTINUOUS LEDGER HORIZONTAL SUPPORT AT 4'-0" O.C. STUD FRAMING SPLAY WIRE HANGER WIRE CLIP CONTINUOUS LEDGER HORIZONTAL SUPPORT AT 4'-0" O.C. STUD FRAMING
