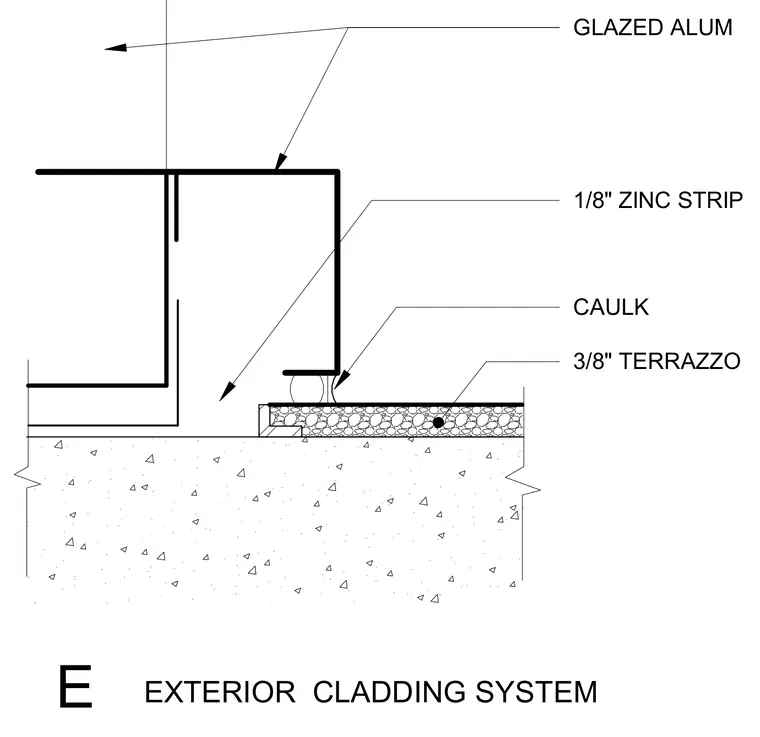

Glazed aluminum exterior cladding meets a three-eighths-inch terrazzo floor finish over a concrete substrate. An one-eighth-inch zinc strip acts as a divider adjacent to the cladding base. A flexible caulk bead seals the joint between the vertical aluminum framing and the horizontal terrazzo assembly.
