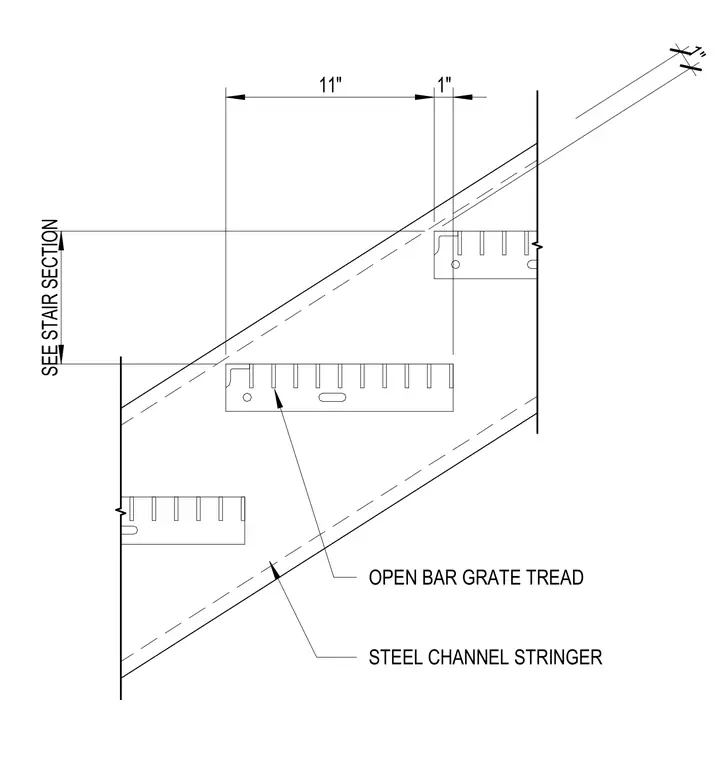

The drawing shows an elevation or section of a steel stair assembly with open bar grate treads supported by steel channel stringers. Dimensions indicate standard tread configurations including an 11-inch tread run and 1-inch overhang. Material callouts identify the steel channel stringer and open bar grate tread components.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
