Architectural · A-6ZM3A

Open Bar Grate -

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A503
Discipline: Architectural

Materials

Steel

Elements

Stairs

Text on the drawing

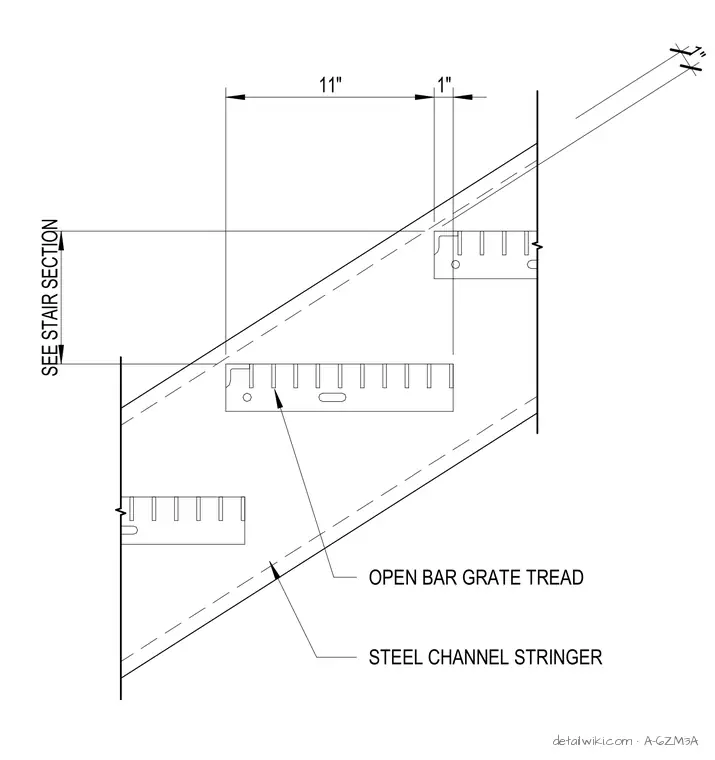

11" 1" SEE STAIR SECTION OPEN BAR GRATE TREAD STEEL CHANNEL STRINGER 1"
