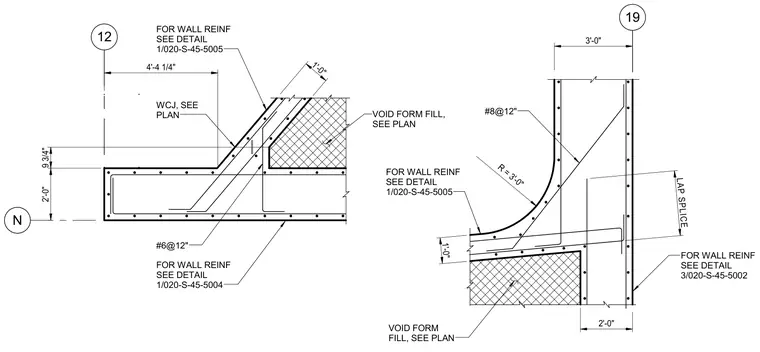

Reinforced concrete wall junctions incorporate void form fill detailed per plan with specific wall reinforcement callouts including number 6 bars at twelve inches spacing and number 8 bars at twelve inches spacing. Wall corners and transitions feature a three-foot radius curve and wall control joints sized per plan. Rebar lap splices are detailed with a three-foot length. Additional wall reinforcement transitions reference specific structural detail callouts.
12 1'-0" 4'-4 1/4" N 2'-0" 9 3/4" WCJ, SEE PLAN #6@12" FOR WALL REINF SEE DETAIL 1/020-S-45-5004 FOR WALL REINF SEE DETAIL 1/020-S-45-5005 VOID FORM FILL, SEE PLAN 19 LAP SPLICE 3'-0" 2'-0" 1'-0" R = 3'-0" VOID FORM FILL, SEE PLAN #8@12" FOR WALL REINF SEE DETAIL 1/020-S-45-5005 FOR WALL REINF SEE DETAIL 3/020-S-45-5002
