Architectural · A-6Z72B

Floor Identification Sign

Elements

About this detail

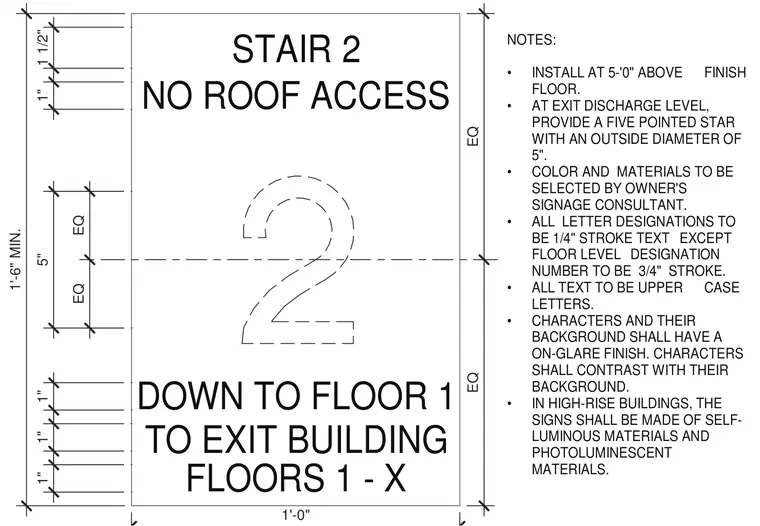

A stairwell identification sign layout measures one foot wide by one foot six inches minimum height, featuring upper case text designating stair numbers, roof access restrictions, and floor ranges. The sign mounts at five feet above the finish floor and incorporates a five-point star at the exit discharge level with a five-inch outside diameter. Letter designations use quarter-inch stroke text while the floor level number utilizes a three-quarter-inch stroke. Characters and background maintain a non-glare finish with high contrast, and high-rise buildings require self-luminous or photoluminous materials.
