Architectural · A-6Z3SZ

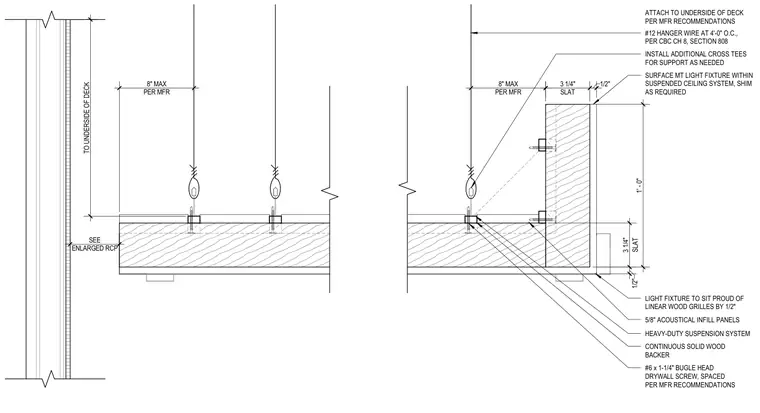

Linear Wood Grille Canopy and Suspended Ceiling Detail

Materials

Timber / Wood Gypsum / Drywall

Elements

Canopies Ceilings Decks

Connections

Deck Attachment

About this detail

A heavy-duty ceiling suspension system hangs from the underside of the deck using number 12 hanger wires spaced at four feet on center per California Building Code Chapter 8 Section 808, with additional cross tees installed as needed per manufacturer recommendations. Five-eighths-inch acoustical infill panels sit within the suspension system. Linear wood slats measuring three and one-quarter inches by one-half inch attach to continuous solid wood backers using number 6 by one-and-one-quarter-inch bugle head drywall screws spaced per manufacturer recommendations. A surface-mounted light fixture sits proud of the linear wood grilles by one-half inch, shimmed as required.
