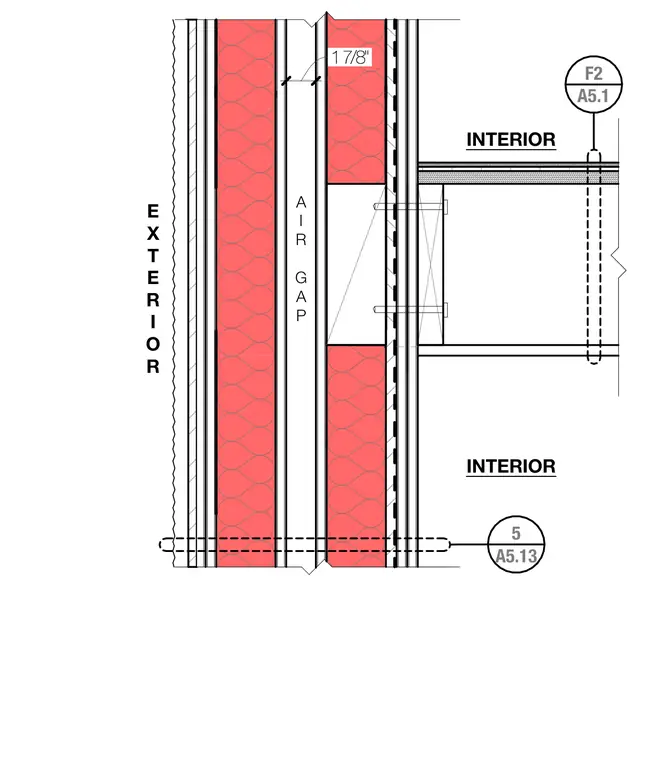

An exterior fire wall assembly terminates at a loft interior with a framed floor connection. The wall incorporates insulation layers separated by a one and seven-eighths inch air gap. Interior finishes tie into structural framing members with indicated detail references.
