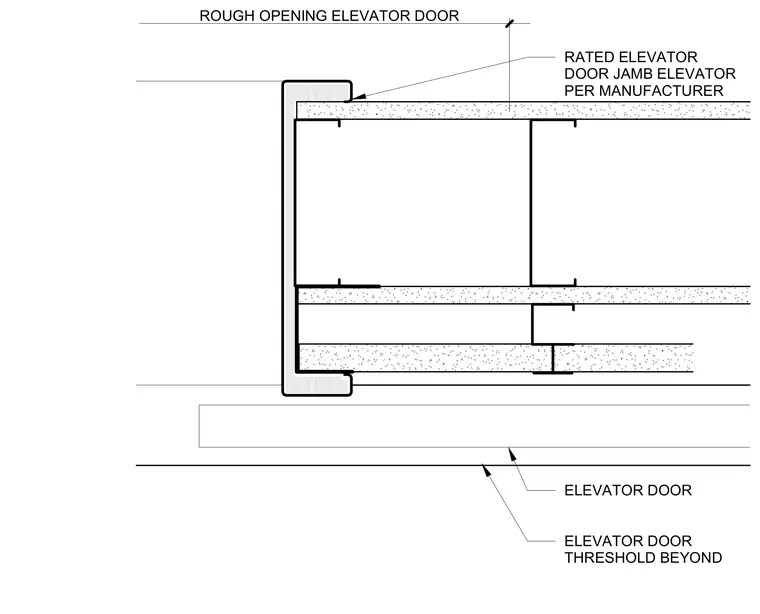

Rated elevator door jamb assembly at the slider side with a rated elevator door jamb per manufacturer installed within the rough opening. The assembly includes elevator door framing and components with the elevator door threshold shown beyond.
RATED ELEVATOR DOOR JAMB ELEVATOR PER MANUFACTURER ELEVATOR DOOR THRESHOLD BEYOND ROUGH OPENING ELEVATOR DOOR ELEVATOR DOOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
