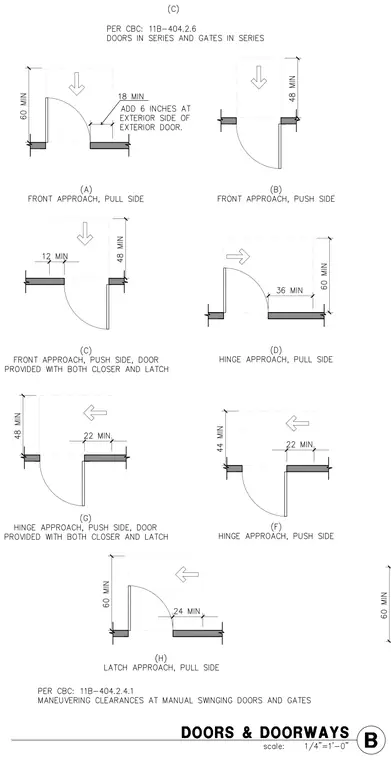

Accessibility maneuvering clearances for manual swinging doors and gates in compliance with California Building Code section 11B-404.2.4.1. Diagrams illustrate front, hinge, and latch approaches for both pull and push sides, indicating required clear floor depths and widths ranging from 36 inches to 60 inches depending on approach direction and hardware. Additional requirements specify a minimum 18-inch clearance with an extra 6 inches at the exterior side of exterior doors, as well as reduced clearances when both a closer and latch are provided.
