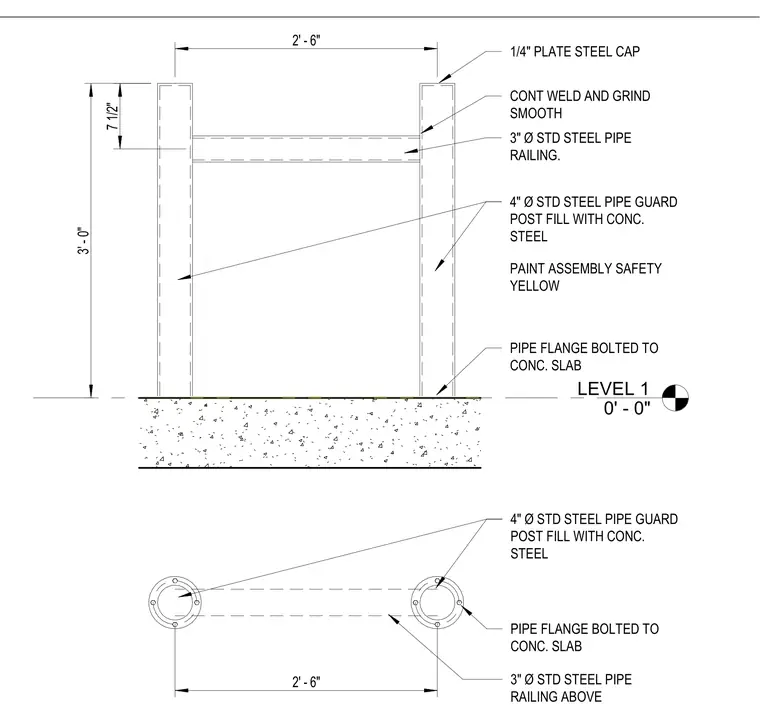

The assembly consists of four-inch diameter standard steel pipe guard posts filled with concrete, spaced two feet six inches on center, and capped with a one-quarter-inch steel plate continuously welded and ground smooth. A three-inch diameter standard steel pipe railing spans between the posts seven and one-half inches below the top of the posts. Each post is secured to the concrete slab via a bolted pipe flange at Level 1, set at zero feet zero inches. The entire steel assembly is finished with safety yellow paint.
LEVEL 1 0' - 0" 4" Ø STD STEEL PIPE GUARD POST FILL WITH CONC. STEEL 3" Ø STD STEEL PIPE RAILING. PIPE FLANGE BOLTED TO CONC. SLAB 1/4" PLATE STEEL CAP CONT WELD AND GRIND SMOOTH PAINT ASSEMBLY SAFETY YELLOW 3' - 0" 7 1/2" 2' - 6" 4" Ø STD STEEL PIPE GUARD POST FILL WITH CONC. STEEL 3" Ø STD STEEL PIPE RAILING ABOVE PIPE FLANGE BOLTED TO CONC. SLAB 2' - 6"
