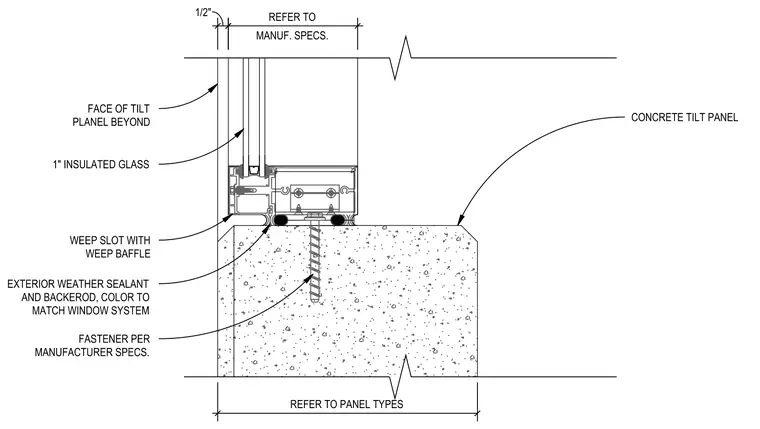

An aluminum window frame with one-inch insulated glass sits atop a concrete tilt-up panel and is anchored by a fastener per manufacturer specifications. Exterior weather sealant with a backer rod, colored to match the window system, seals the joint between the sill and the concrete panel. A weep slot with a weep baffle provides drainage through the window frame.
1/2" MANUF. SPECS. REFER TO EXTERIOR WEATHER SEALANT AND BACKEROD, COLOR TO MATCH WINDOW SYSTEM 1" INSULATED GLASS FACE OF TILT PLANEL BEYOND FASTENER PER MANUFACTURER SPECS. CONCRETE TILT PANEL REFER TO PANEL TYPES WEEP SLOT WITH WEEP BAFFLE
