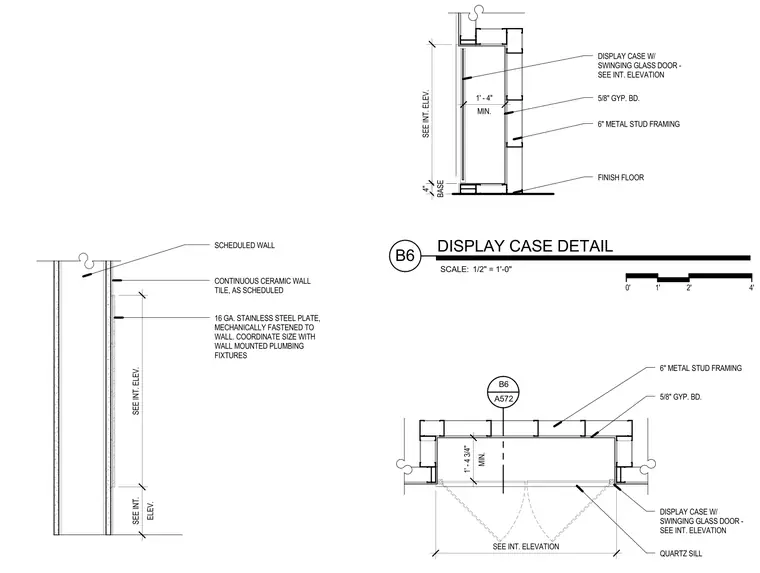

A recessed display case is framed within six-inch metal studs and five-eighths-inch gypsum board partitions, featuring swinging glass doors and a quartz sill. The adjacent scheduled wall assembly incorporates continuous ceramic wall tile and a sixteen-gauge mechanically fastened stainless steel plate sized to coordinate with scheduled wall-mounted plumbing fixtures. The assembly is detailed with a minimum internal depth of one foot four and three-quarter inches above a four-inch base finish floor.
5/8" GYP. BD. 6" METAL STUD FRAMING DISPLAY CASE W/ SWINGING GLASS DOOR - SEE INT. ELEVATION QUARTZ SILL MIN. 1' - 4 3/4" SEE INT. ELEVATION B6 A572 5/8" GYP. BD. 6" METAL STUD FRAMING DISPLAY CASE W/ SWINGING GLASS DOOR - SEE INT. ELEVATION MIN. 1' - 4" SEE INT. ELEV. BASE 4" FINISH FLOOR ELEV. SEE INT. SEE INT. ELEV. CONTINUOUS CERAMIC WALL TILE, AS SCHEDULED 16 GA. STAINLESS STEEL PLATE, MECHANICALLY FASTENED TO WALL. COORDINATE SIZE WITH WALL MOUNTED PLUMBING FIXTURES SCHEDULED WALL SCALE: 1/2" = 1'-0" B6 DISPLAY CASE DETAIL 0' 1' 2' 4'
