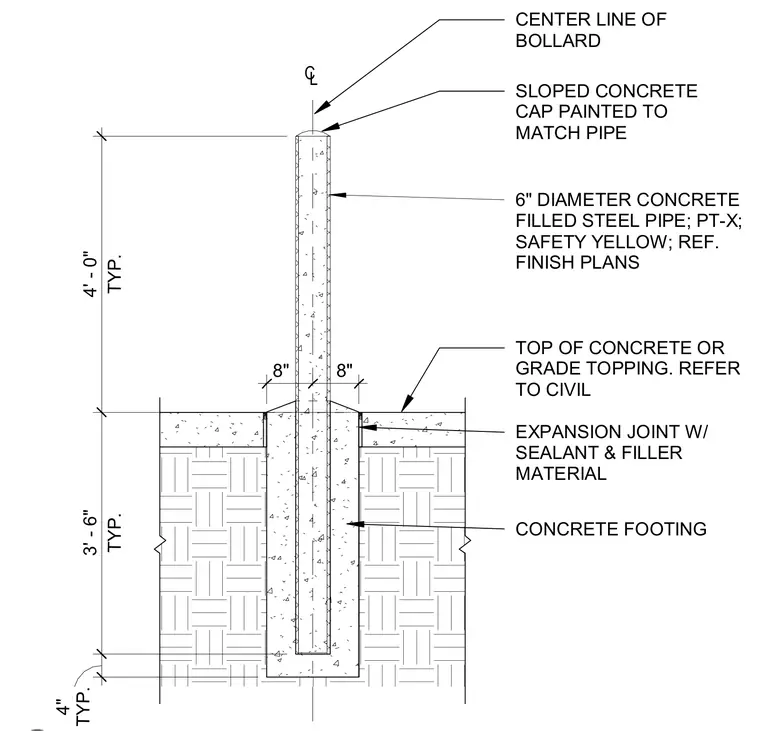

A six-inch diameter concrete-filled steel pipe bollard extends four feet above grade with a sloped concrete cap painted to match the pipe. The bollard embeds three feet six inches into a concrete footing below grade, surrounded by an expansion joint with sealant and filler material at the top of the concrete or grade topping.
C L TYP. 4' - 0" TYP. 3' - 6" TYP. 4" CENTER LINE OF BOLLARD SLOPED CONCRETE CAP PAINTED TO MATCH PIPE TOP OF CONCRETE OR GRADE TOPPING. REFER TO CIVIL EXPANSION JOINT W/ SEALANT & FILLER MATERIAL CONCRETE FOOTING 8" 8" 6" DIAMETER CONCRETE FILLED STEEL PIPE; PT-X; SAFETY YELLOW; REF. FINISH PLANS
