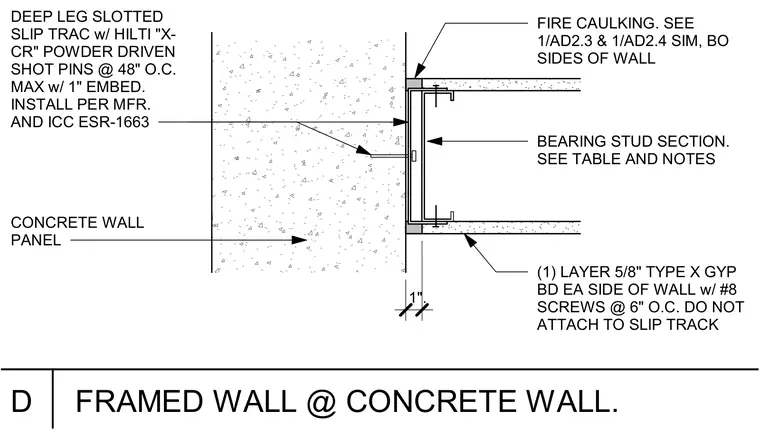

A deep leg slotted slip track anchors to the concrete wall panel using Hilti X-CR powder-driven shot pins at forty-eight inches on center maximum with one-inch embedment per manufacturer requirements and ICC ESR-1663. A bearing stud section nests within the slip track while maintaining a one-inch gap. Each side of the wall receives one layer of five-eighths-inch Type X gypsum board fastened with number eight screws at six inches on center. The gypsum board remains unattached to the slip track, and fire caulking fills the joint at both sides of the wall.
D FRAMED WALL @ CONCRETE WALL. 1". DEEP LEG SLOTTED SLIP TRAC w/ HILTI "X- CR" POWDER DRIVEN SHOT PINS @ 48" O.C. MAX w/ 1" EMBED. INSTALL PER MFR. AND ICC ESR-1663 CONCRETE WALL PANEL BEARING STUD SECTION. SEE TABLE AND NOTES FIRE CAULKING. SEE 1/AD2.3 & 1/AD2.4 SIM, BO SIDES OF WALL (1) LAYER 5/8" TYPE X GYP BD EA SIDE OF WALL w/ #8 SCREWS @ 6" O.C. DO NOT ATTACH TO SLIP TRACK
