A perforated metal panel featuring a Kynar finish mounts to a three-inch aluminum horizontal and vertical framing system by the manufacturer. The exterior cladding assemblies interface with a concrete spandrel beam featuring three-quarter-inch chamfered edges and a Tex-Cote finish on the front, top, and inside faces. A post-tensioned slab connects to an upturn beam and spandrel joint, which is patched and filled flush to match the adjacent concrete. The tapered concrete slab includes a continuous dripmold and a concrete swale at a pressure-treated deck.

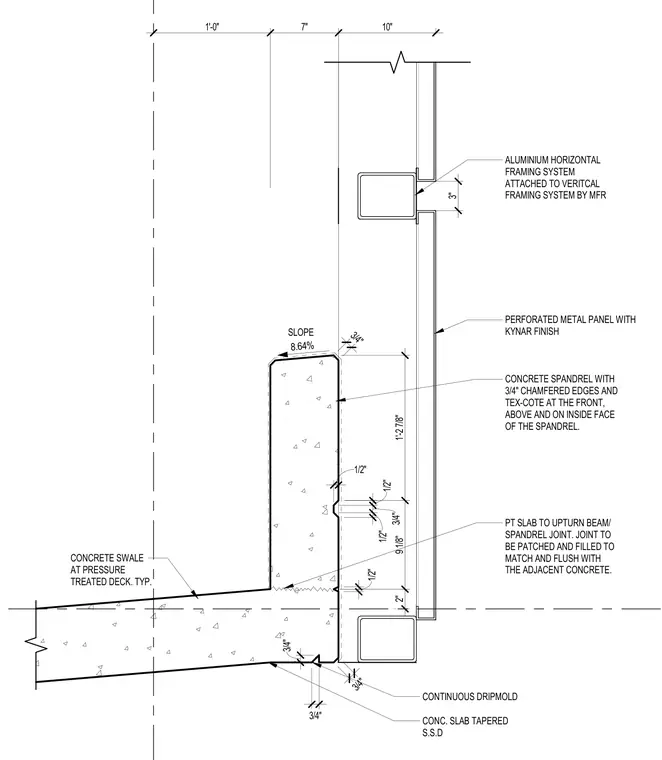

PERFORATED METAL PANEL WITH KYNAR FINISH 3" ALUMINIUM HORIZONTAL FRAMING SYSTEM ATTACHED TO VERITCAL FRAMING SYSTEM BY MFR CONC. SLAB TAPERED S.S.D CONTINUOUS DRIPMOLD PT SLAB TO UPTURN BEAM/ SPANDREL JOINT. JOINT TO BE PATCHED AND FILLED TO MATCH AND FLUSH WITH THE ADJACENT CONCRETE. CONCRETE SPANDREL WITH 3/4" CHAMFERED EDGES AND TEX-COTE AT THE FRONT, ABOVE AND ON INSIDE FACE OF THE SPANDREL. CONCRETE SWALE AT PRESSURE TREATED DECK. TYP. 1/2" 1/2" 3/4" 1/2" 3/4" 3/4" 3/4" SLOPE 1'-2 7/8" 9 1/8" 2" 8.64% 1'-0" 7" 10" 3/4" 1/2"
