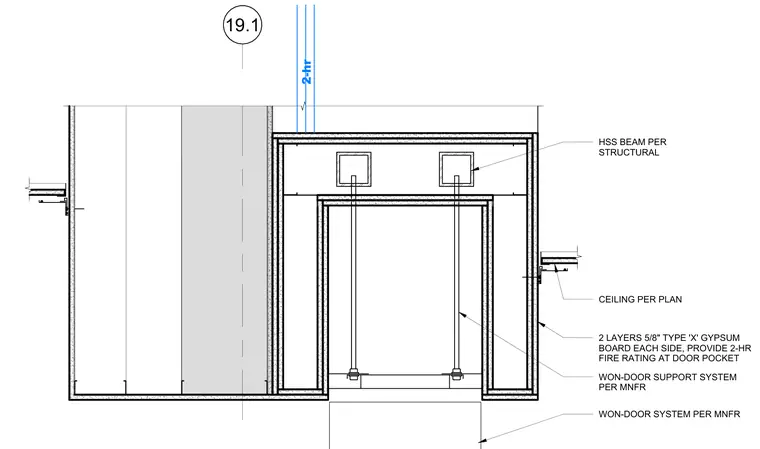

This architectural detail shows the head condition and support framing for a Won-Door system located at opening 510B. The assembly is anchored to hollow structural section beams provided per structural drawings. The enclosure is finished with two layers of 5/8-inch Type X gypsum board on each side to achieve a two-hour fire rating at the door pocket. The Won-Door support system is installed per the manufacturer's specifications above the ceiling line.
19.1 HSS BEAM PER STRUCTURAL WON-DOOR SYSTEM PER MNFR WON-DOOR SUPPORT SYSTEM PER MNFR 2 LAYERS 5/8" TYPE 'X' GYPSUM BOARD EACH SIDE, PROVIDE 2-HR FIRE RATING AT DOOR POCKET CEILING PER PLAN 2-hr
