DHHS Reception Transition Counter with Security Glazing

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Curtain Walls Floors / Slabs Decks Bracing Millwork / Casework

Connections

Bracing Connection

About this detail

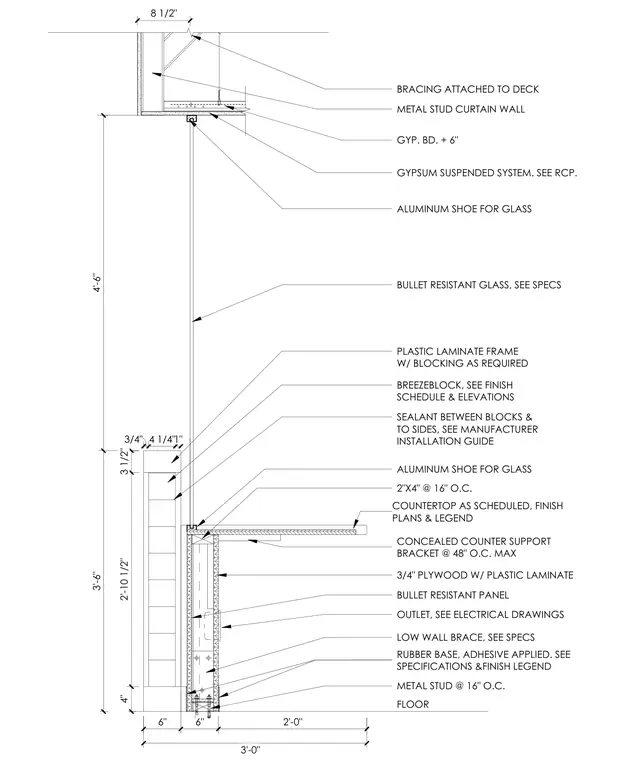

This interior transaction counter assembly features a reception desk with a cold-formed steel stud framing system spaced at sixteen inches on center, supporting a three-quarter-inch plywood substrate finished with plastic laminate and a scheduled countertop. Concealed counter support brackets are spaced at forty-eight inches on center maximum, with a low wall brace and a bullet-resistant panel integrated into the casework. The lower portion includes a rubber base applied with adhesive above the finished floor, along with an electrical outlet as indicated on electrical drawings. A breeze block privacy wall is positioned adjacent to the counter with sealant applied between blocks and to the sides. Above the counter, an aluminum shoe holds bullet-resistant glass extending upward to a suspended gypsum ceiling system and metal stud curtain wall braced back to the deck.
