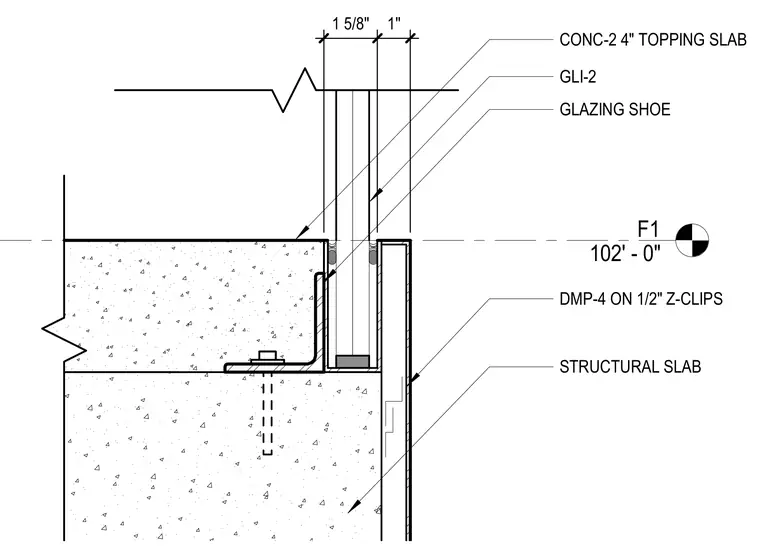

A glass guardrail base shoe is anchored directly into a structural concrete slab supporting a four-inch topping slab. The glazing shoe secures a glass panel adjacent to the slab edge. Panel cladding DMP-4 is secured over one-half-inch Z-clips along the vertical edge of the structural slab.
F1 102' - 0" DMP-4 ON 1/2" Z-CLIPS GLI-2 STRUCTURAL SLAB CONC-2 4" TOPPING SLAB GLAZING SHOE 1 5 / 8 " 1 "
