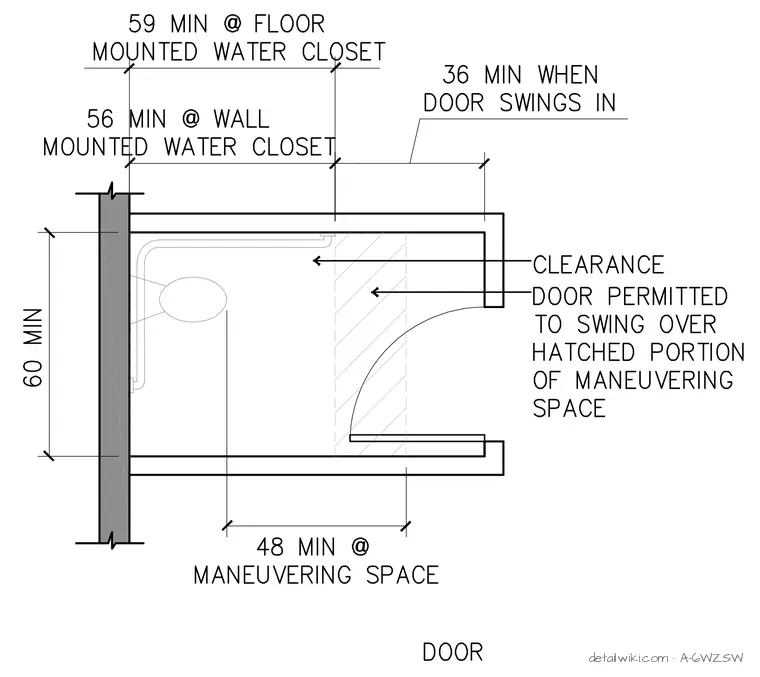

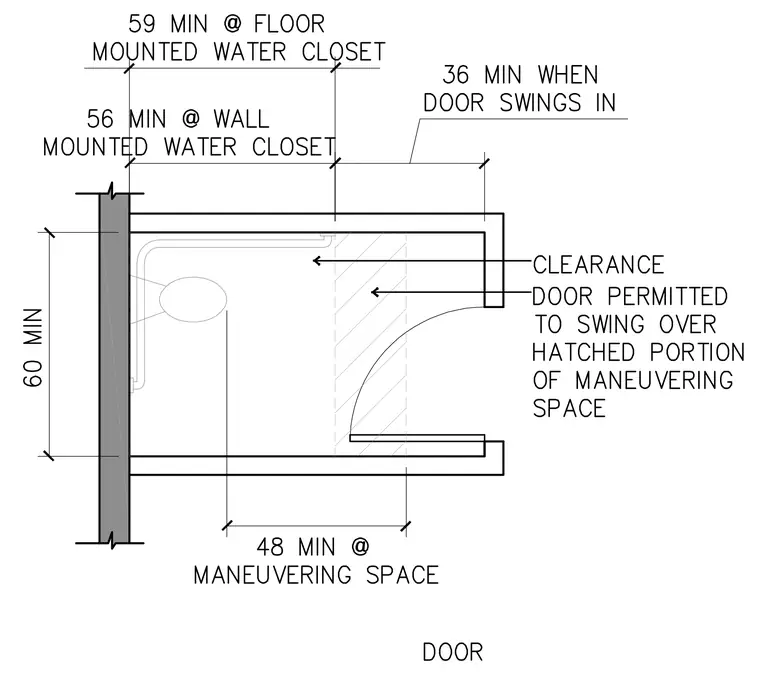

Accessible restroom stall spatial requirements include a minimum depth of 59 inches for floor-mounted water closets and 56 inches for wall-mounted water closets, measured from the wall. A minimum width of 60 inches is required for the stall. The maneuvering space requires a minimum depth of 48 inches, with a 36-inch clearance provided where the door swings into the stall. The door is permitted to swing over the hatched portion of the designated maneuvering space.
