Architectural · A-6WXCR

Drinking Fountain

Elements

About this detail

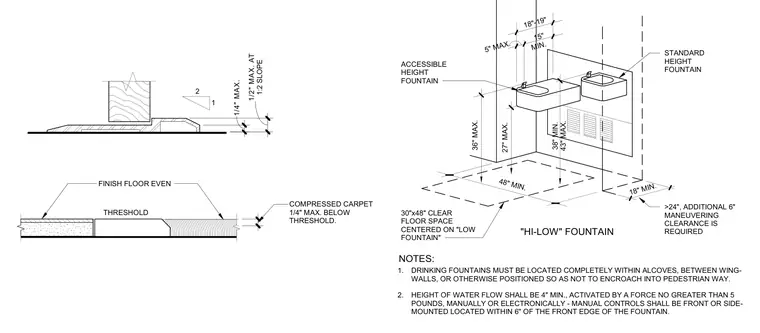

Accessibility mounting requirements and clearance dimensions for a hi-low drinking fountain configuration alongside flooring transition details. The accessible height fountain features a maximum spout height of thirty-six inches, a maximum twenty-seven inch knee clearance below, and an eighteen inch minimum clear floor space width on the side. A thirty by forty-eight inch clear floor space is centered on the low fountain, with an additional six inch maneuvering clearance required for knee spaces greater than twenty-four inches deep. Fountains must be located completely within alcoves or between wing-walls to prevent pedestrian way encroachment. Water flow height must be four inches minimum, activated by a force under five pounds via front or side-mounted controls located within six inches of the front edge. Threshold details show maximum slopes of one-in-two with heights restricted to one-quarter inch maximum, or one-half inch maximum at compressed carpet transitions.
