The assembly features a roof deck with a roofing system secured by a one-and-a-half-inch minimum hot air weld. A no-hub connection is sealed with stainless steel clamping bands and non-curing sealant placed typically. Additional manufacturer-specified sealant and all-around sealant complete the waterproof joint.

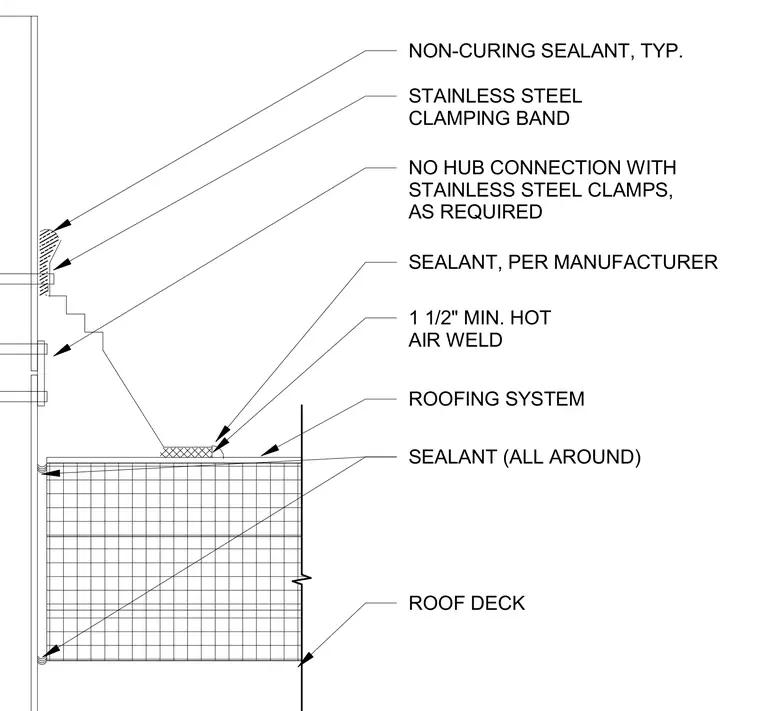

ROOFING SYSTEM ROOF DECK NON-CURING SEALANT, TYP. STAINLESS STEEL CLAMPING BAND NO HUB CONNECTION WITH STAINLESS STEEL CLAMPS, AS REQUIRED SEALANT, PER MANUFACTURER SEALANT (ALL AROUND) 1 1/2" MIN. HOT AIR WELD
