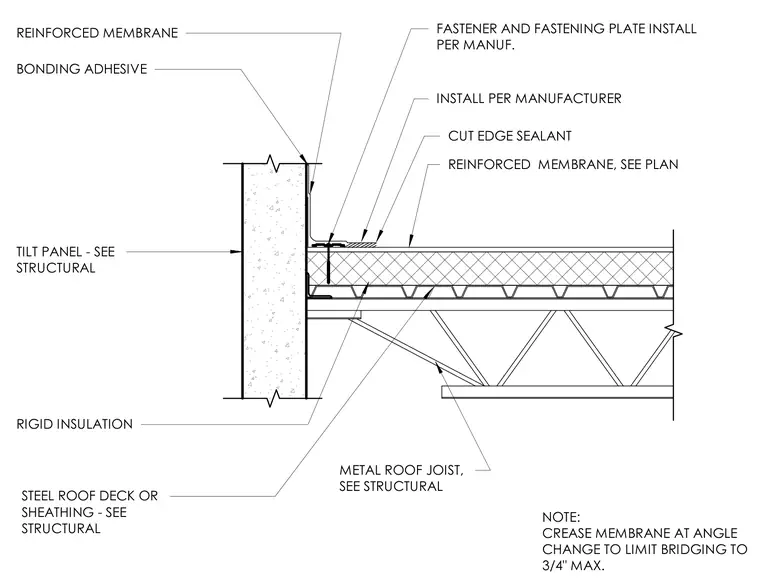

A reinforced roof membrane is adhered to rigid insulation over a steel roof deck or sheathing, supported by a metal roof joist at a tilt-up concrete wall panel. Fasteners and fastening plates secure the membrane per manufacturer specifications, with cut-edge sealant applied at joints. Bonding adhesive secures the reinforced membrane vertically up the face of the tilt panel. The membrane is creased at the angle change to limit bridging to a maximum of three-quarters of an inch.
METAL ROOF JOIST, SEE STRUCTURAL TILT PANEL - SEE STRUCTURAL STEEL ROOF DECK OR SHEATHING - SEE STRUCTURAL NOTE: CREASE MEMBRANE AT ANGLE CHANGE TO LIMIT BRIDGING TO 3/4" MAX. BONDING ADHESIVE REINFORCED MEMBRANE FASTENER AND FASTENING PLATE INSTALL PER MANUF. INSTALL PER MANUFACTURER CUT EDGE SEALANT REINFORCED MEMBRANE, SEE PLAN RIGID INSULATION
