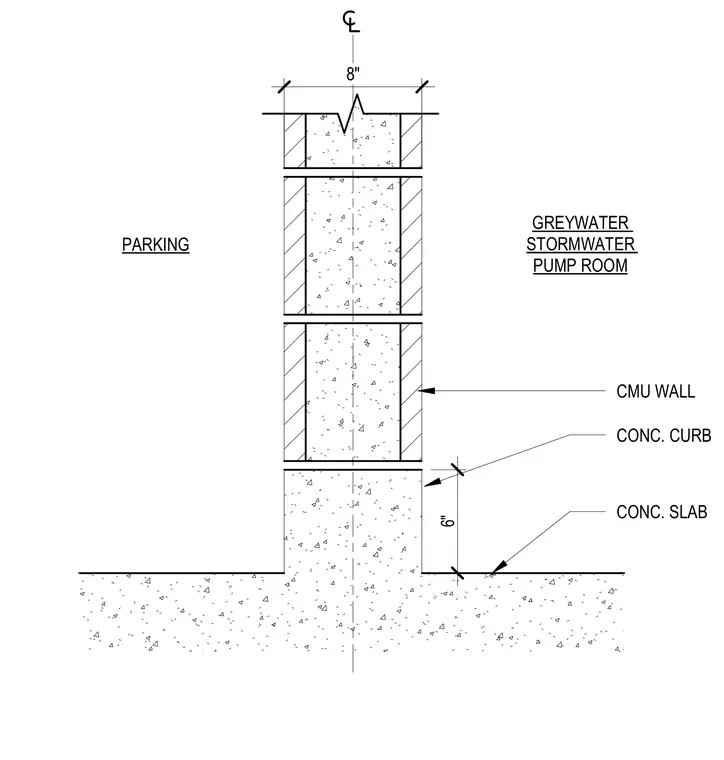

A six-inch high concrete curb rises from a six-inch thick concrete slab to support an eight-inch concrete masonry unit partition wall. The wall separates the parking area on one side from the greywater and stormwater pump room on the other. The masonry wall features centered vertical alignment and split-level designation across the partition.
6" GREYWATER STORMWATER PUMP ROOM CONC. SLAB CONC. CURB CMU WALL PARKING 8"
