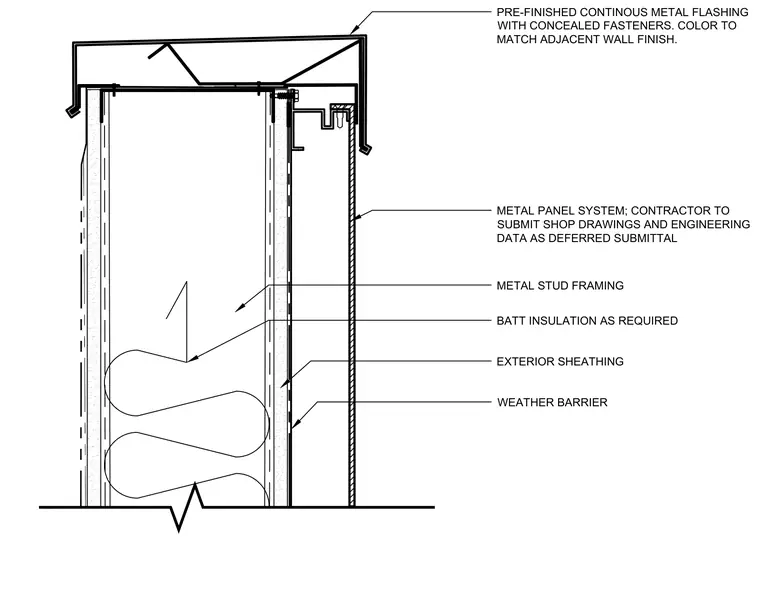

This parapet detail features a pre-finished continuous metal flashing with concealed fasteners, color-matched to the adjacent wall finish. The parapet wall assembly consists of cold-formed metal stud framing backed by exterior sheathing and a weather barrier, with batt insulation installed in the stud cavity as required. The exterior cladding utilizes a metal panel system, with the contractor required to submit shop drawings and engineering data as a deferred submittal.
WEATHER BARRIER EXTERIOR SHEATHING BATT INSULATION AS REQUIRED METAL STUD FRAMING METAL PANEL SYSTEM; CONTRACTOR TO SUBMIT SHOP DRAWINGS AND ENGINEERING DATA AS DEFERRED SUBMITTAL PRE-FINISHED CONTINOUS METAL FLASHING WITH CONCEALED FASTENERS. COLOR TO MATCH ADJACENT WALL FINISH.
