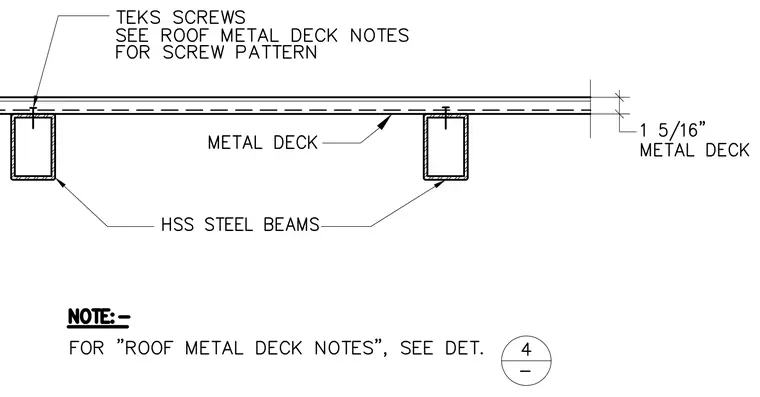

Metal deck bears across hollow structural section steel beams with a depth of one and five-sixteenth inches. The assembly is secured using Teks screws fastened according to the roof metal deck notes. A reference note directs the builder to detail four for additional metal deck notes.
