Architectural · A-6W6PF

Wood Slat Soffit Steel Angle and Plate Detail

Materials

Steel Timber / Wood

Elements

Ceilings Connections / Plates

Connections

Welded Connection

About this detail

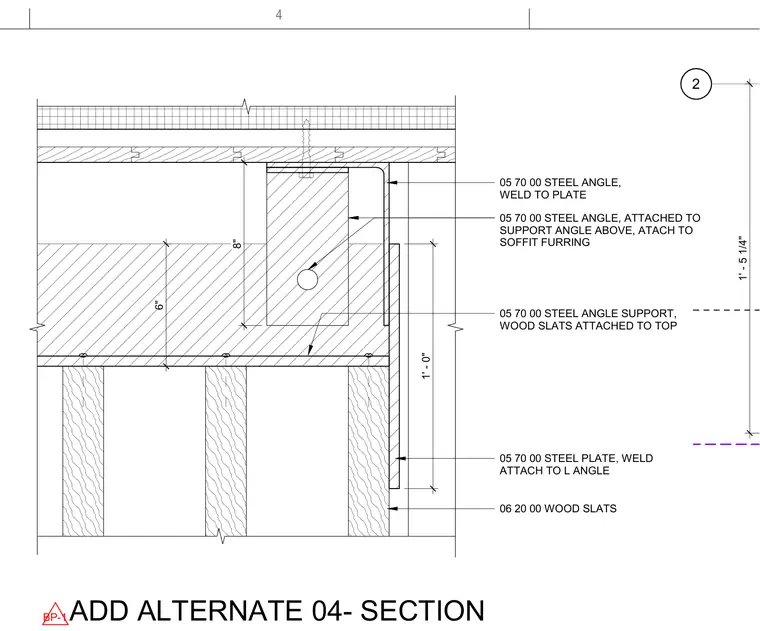

Wood slats are attached to the top of a steel angle support, which hangs from a steel angle suspended above and secured to soffit furring. A steel plate is welded to the steel angle and fastened to the wood slats. Dimensions indicate an 8-inch vertical space, a 6-inch intermediate zone, and a 1-foot-0-inch overall slat drop.
