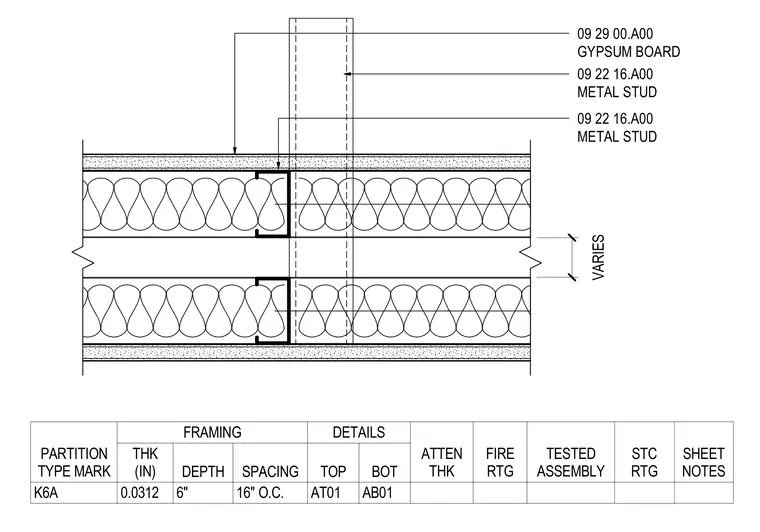

A metal stud wall assembly with gypsum board layers on both faces. The framing consists of six-inch metal studs spaced at sixteen inches on center. Sound attenuation or insulation is placed within the stud cavity. A partition type schedule table below specifies the framing parameters and connection details.
VARIES 09 29 00.A00 GYPSUM BOARD 09 22 16.A00 METAL STUD 09 22 16.A00 METAL STUD PARTITION TYPE MARK FRAMING DETAILS ATTEN THK FIRE RTG TESTED ASSEMBLY STC RTG SHEET NOTES THK (IN) DEPTH SPACING TOP BOT K6A 0.0312 6" 16" O.C. AT01 AB01
