Mechanical · A-6VPJC

Single Duct Air Terminal with Hot Water Reheat Coil

Elements

About this detail

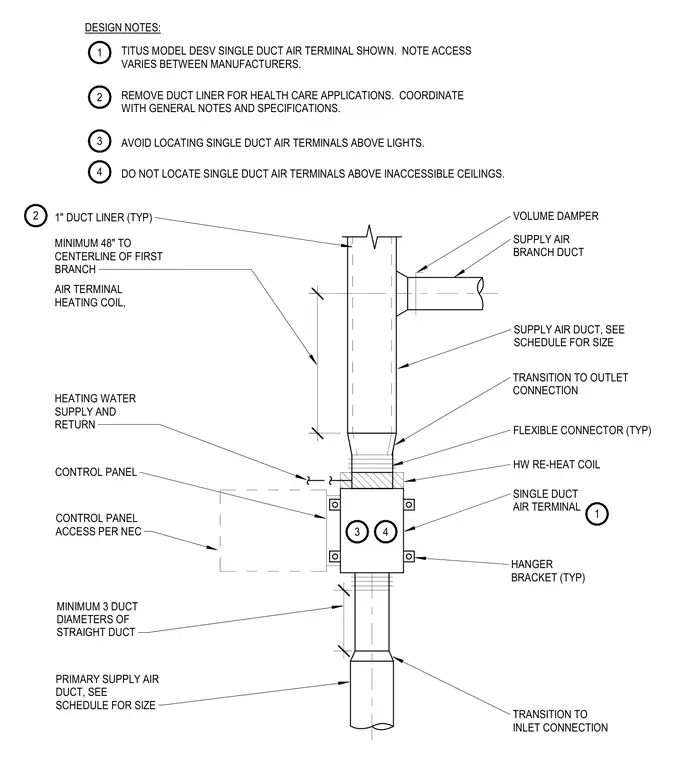

A single duct air terminal features a Titus model DESV unit equipped with a hot water reheat coil, heating water supply and return connections, and an integral control panel requiring access per NEC standards. The assembly connects to a primary supply air duct sized per schedule, maintaining a minimum of three duct diameters of straight duct before the inlet connection and a minimum forty-eight inches to the centerline of the first branch on the supply side. A flexible connector joins the terminal unit to the ductwork, which includes one-inch typical duct liner and a volume damper on the supply branch. Hanger brackets support the unit from above while transitions tie the inlet and outlet connections to the surrounding ductwork.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
