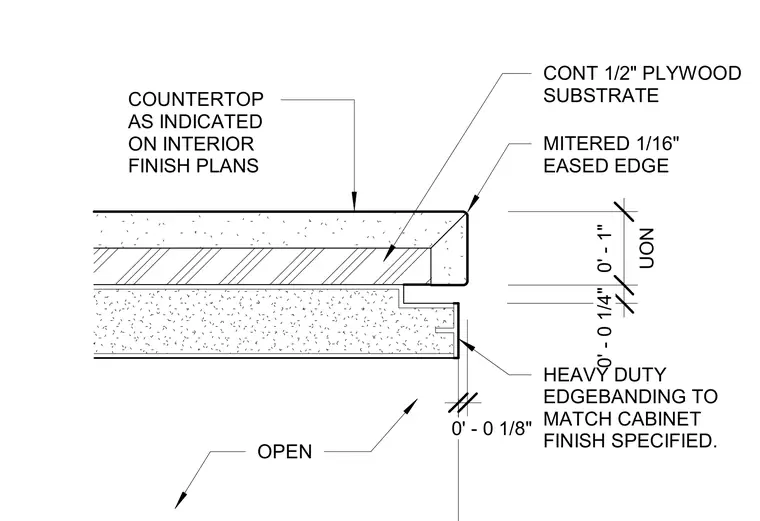

A continuous one-half-inch plywood substrate features a mitered one-sixteenth-inch eased edge. Heavy-duty edgebanding is applied to match the specified cabinet finish. The countertop material is installed as indicated on interior finish plans.
UON 0' - 1" 0' - 0 1/4" OPEN MITERED 1/16" EASED EDGE CONT 1/2" PLYWOOD SUBSTRATE COUNTERTOP AS INDICATED ON INTERIOR FINISH PLANS 0' - 0 1/8" HEAVY DUTY EDGEBANDING TO MATCH CABINET FINISH SPECIFIED.
