Architectural · A-6VENN

Site Light Pole Base and Foundation Detail

Materials

Concrete Steel

Elements

Expansion / Control Joints Site / Paving Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

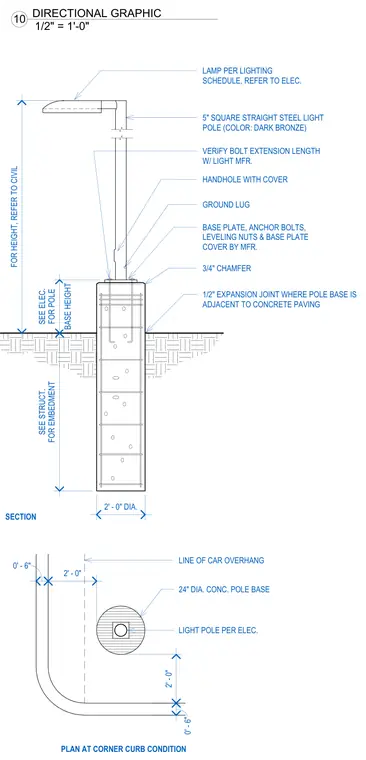

A 5-inch square straight steel light pole is anchored to a 24-inch diameter reinforced concrete pole base. The assembly includes a base plate, anchor bolts, leveling nuts, and a base plate cover provided by the manufacturer, along with a handhole with cover and a ground lug. A 3/4-inch chamfer finishes the top edge of the concrete pier, and a 1/2-inch expansion joint is provided where the pole base is adjacent to concrete paving. Heights and embedment depths are coordinated with electrical, structural, and civil drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
