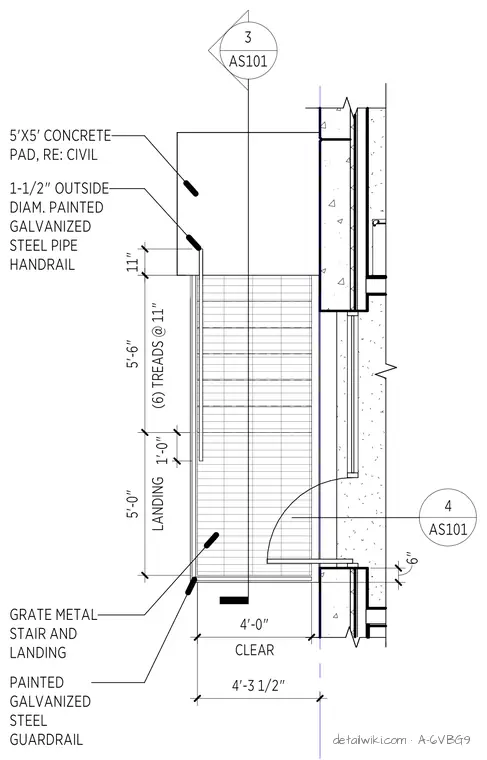

Exterior stair assembly with grate metal stair and landing at a clear width of 4'-0". The stair run comprises six 11-inch treads leading to a 5'-0" deep landing. The assembly sits adjacent to a concrete wall and terminates at a 5'x5' concrete pad, as referenced in civil drawings. A 1-1/2 inch outside diameter painted galvanized steel pipe handrail runs along the stair, and a painted galvanized steel guardrail encloses the landing area.
