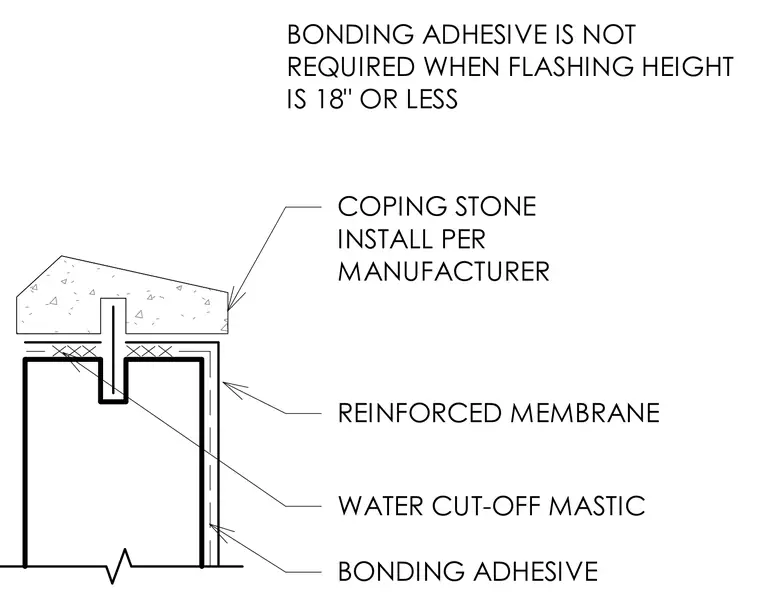

A stone coping sits atop the parapet wall, installed per manufacturer instructions. A reinforced membrane wraps the top of the wall beneath the coping, sealed with water cut-off mastic. Bonding adhesive is applied along the lower vertical wall surfaces, with a note specifying that bonding adhesive is not required when flashing height is eighteen inches or less.
BONDING ADHESIVE IS NOT REQUIRED WHEN FLASHING HEIGHT IS 18" OR LESS COPING STONE INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER CUT-OFF MASTIC BONDING ADHESIVE
