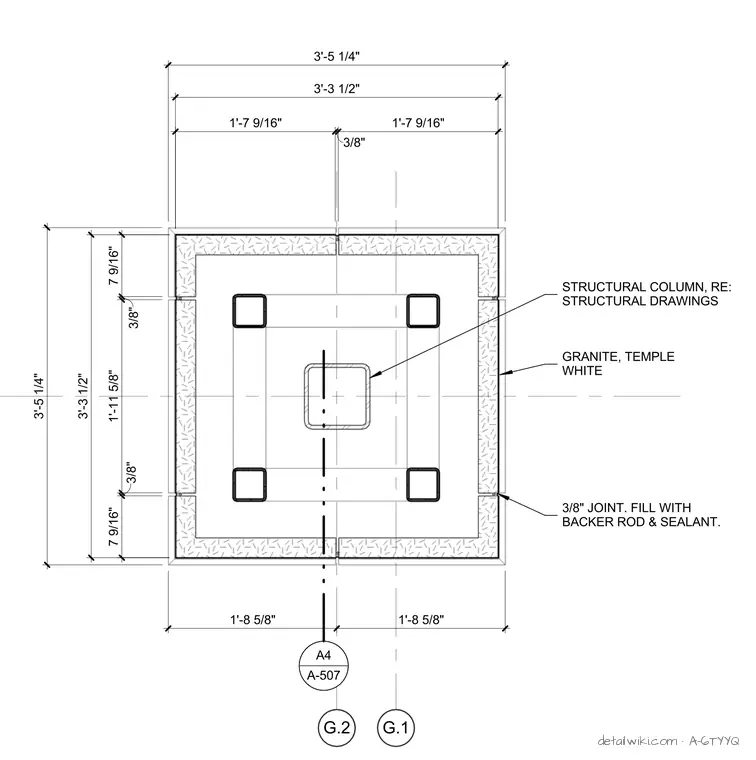

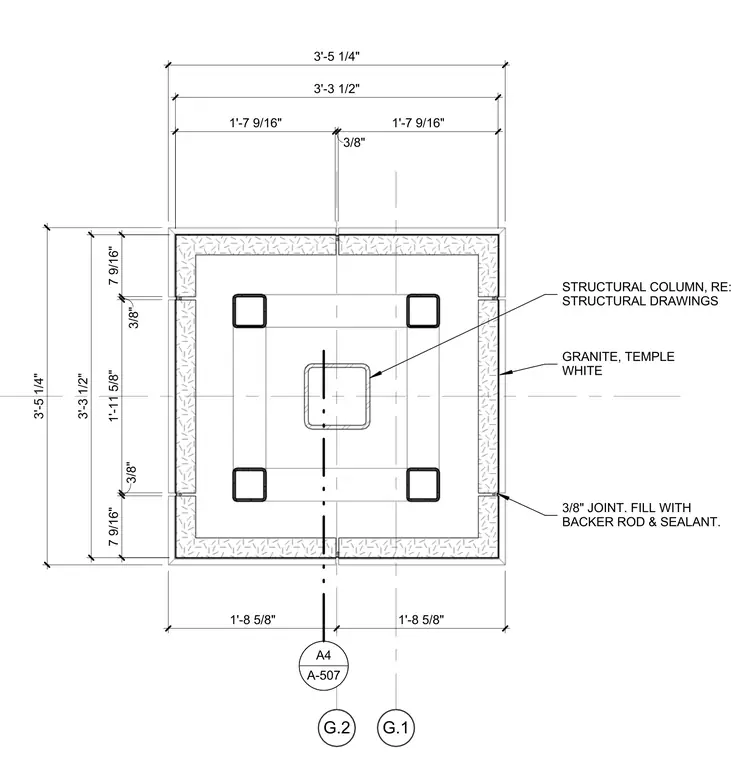

A structural steel column is enclosed in a granite cladding assembly measuring three feet five and one-quarter inches square. The cladding consists of Temple White granite panels set with three-eighths inch joints filled with backer rod and sealant. Overall dimensions and individual panel widths, including seven and nine-sixteenths inch and one-foot seven and nine-sixteenth inch segments, coordinate the stone layout around the central column.
G.1 G.2 A4 A-507 GRANITE, TEMPLE WHITE 1'-7 9/16" 3/8" 1'-7 9/16" 3'-3 1/2" 7 9/16" 3/8" 1'-11 5/8" 3/8" 7 9/16" 3'-3 1/2" STRUCTURAL COLUMN, RE: STRUCTURAL DRAWINGS 3'-5 1/4" 3'-5 1/4" 1'-8 5/8" 1'-8 5/8" 3/8" JOINT. FILL WITH BACKER ROD & SEALANT.
