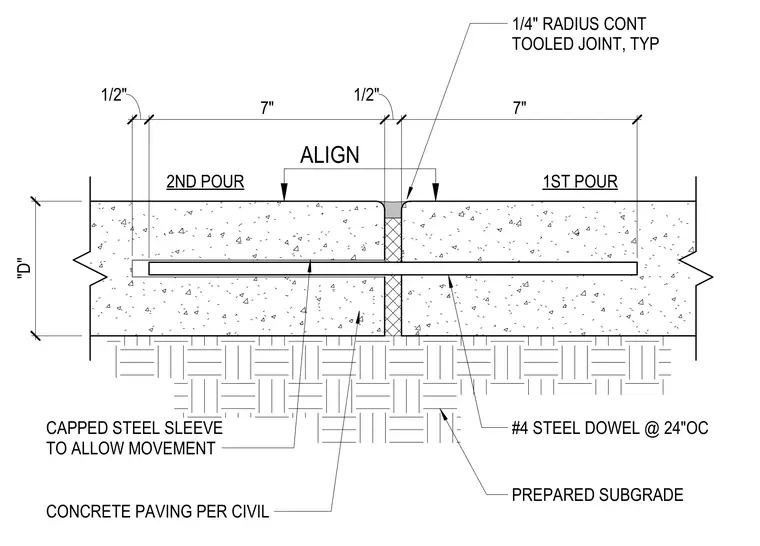

Concrete paving expansion joint separating first and second pours over a prepared subgrade. A smooth steel dowel inside a capped steel sleeve allows horizontal movement across the joint. Number four steel dowels are spaced at twenty-four inches on center. The joint features a one-quarter-inch radius continuous tooled joint at the top surface.
"D" PREPARED SUBGRADE CAPPED STEEL SLEEVE TO ALLOW MOVEMENT 1/4" RADIUS CONT TOOLED JOINT, TYP 1/2" 7" 1/2" 7" #4 STEEL DOWEL @ 24"OC 1ST POUR 2ND POUR CONCRETE PAVING PER CIVIL ALIGN
