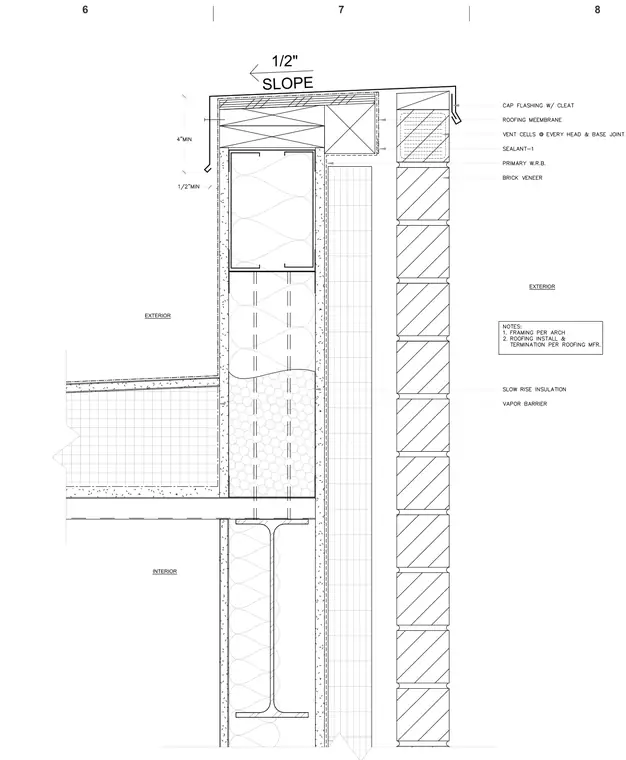

A cap flashing with cleat terminates the top of the parapet above a roofing membrane and sloped blocking. Vent cells are positioned at every head and base joint, backed by sealant and a primary water-resistive barrier over the exterior sheathing. The brick veneer wall incorporates slow rise insulation and a vapor barrier behind the exterior wythe, extending past the structural steel framing and roof deck level.
