Architectural · A-6TNAT

Adhered Wall Flashing

Materials

flashing insulation membrane weld

Elements

Walls Roofs Decks Waterproofing / Flashing Insulation

Connections

Welded Connection Deck Attachment

About this detail

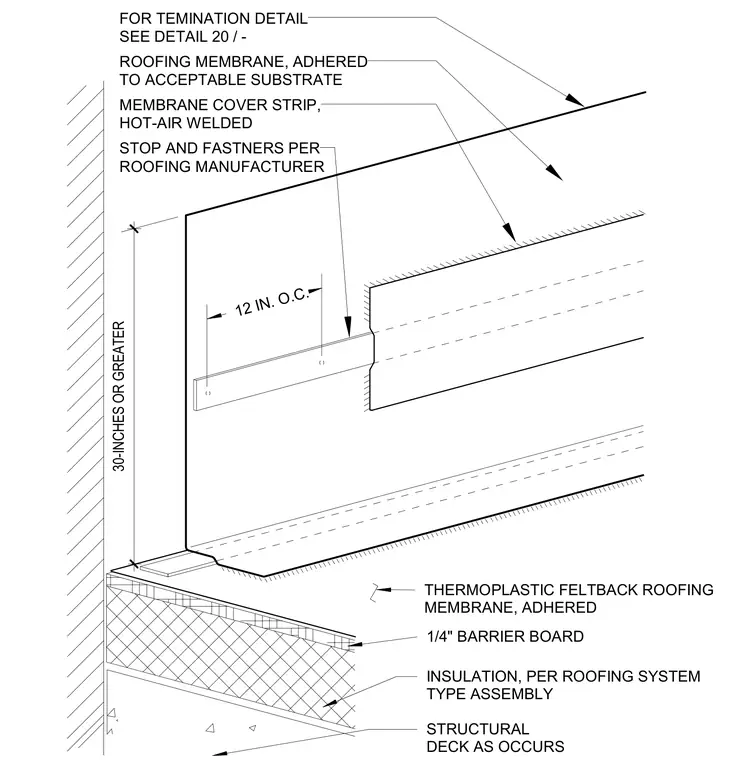

An axonometric detail of an adhered wall flashing assembly tied into a roofing system. The construction begins with a structural deck as occurs, topped with insulation sized per the roofing system type assembly, a one-quarter-inch barrier board, and a thermoplastic feltback roofing membrane adhered to an acceptable substrate. A membrane cover strip is hot-air welded over the termination, secured with fasteners spaced twelve inches on center. The vertical flashing extends thirty inches or greater, with additional termination details referenced on another sheet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
