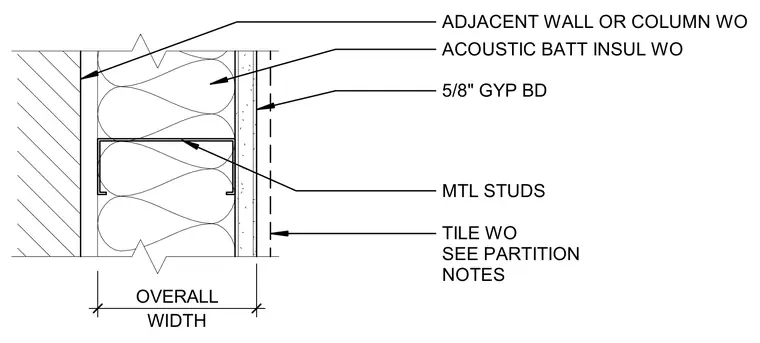

This partition wall junction details the intersection of a metal stud partition with an adjacent wall or column. The assembly consists of metal studs faced with five-eighths-inch gypsum board on the exterior and lined with acoustic batt insulation within the stud cavity. Optional tile finishes and overall wall widths are coordinated per partition notes.
ADJACENT WALL OR COLUMN WO WIDTH OVERALL 5/8" GYP BD MTL STUDS ACOUSTIC BATT INSUL WO TILE WO SEE PARTITION NOTES
