Architectural · A-6TEM6

Countertop Support and Millwork at Security Office Wall

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood Aluminum Metal (misc.)

Elements

Walls Partitions Windows Floors / Slabs Millwork / Casework

Connections

Bolted Connection

About this detail

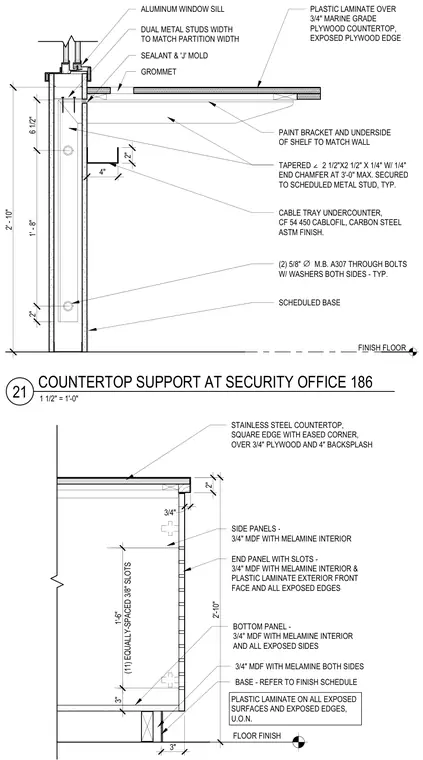

A security office countertop is supported by a tapered 2 1/2" x 2 1/2" x 1/4" structural steel angle bracket secured to scheduled metal studs with two 5/8-inch diameter ASTM A307 machine bolts with washers on both sides. The countertop consists of plastic laminate over 3/4-inch marine-grade plywood or a 3/4-inch stainless steel countertop over 3/4-inch plywood. Dual metal studs match the partition width, alongside a J-mold with sealant below an aluminum window sill, a grommet, and a 4-inch Cablofil carbon steel undercounter cable tray. Millwork cabinetry features 3/4-inch MDF side panels with melamine interiors, slotted end panels, bottom panels, and a scheduled base finish.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
