Curtain Wall Sill at Classroom Wall

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Roofs Waterproofing / Flashing Insulation

About this detail

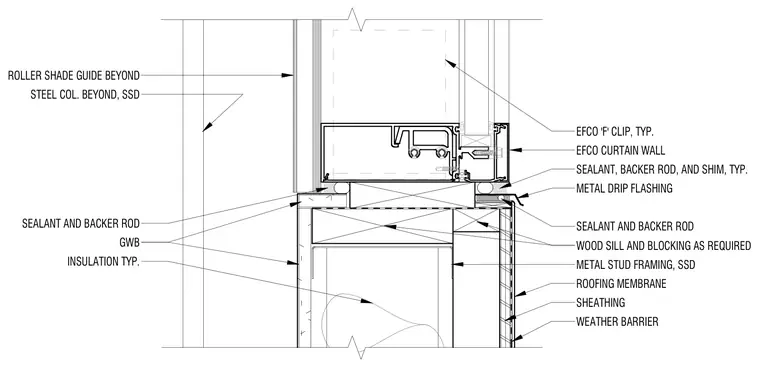

An Efco curtain wall sill sits atop wood sill and blocking supported by cold-formed metal stud framing. The sill assembly is secured with an Efco F clip and sealed with backer rod and sealant, alongside a metal drip flashing. The exterior wall incorporates weather barrier, sheathing, and a roofing membrane, while the interior features gypsum wallboard and insulation. A roller shade guide and steel column are located beyond.
