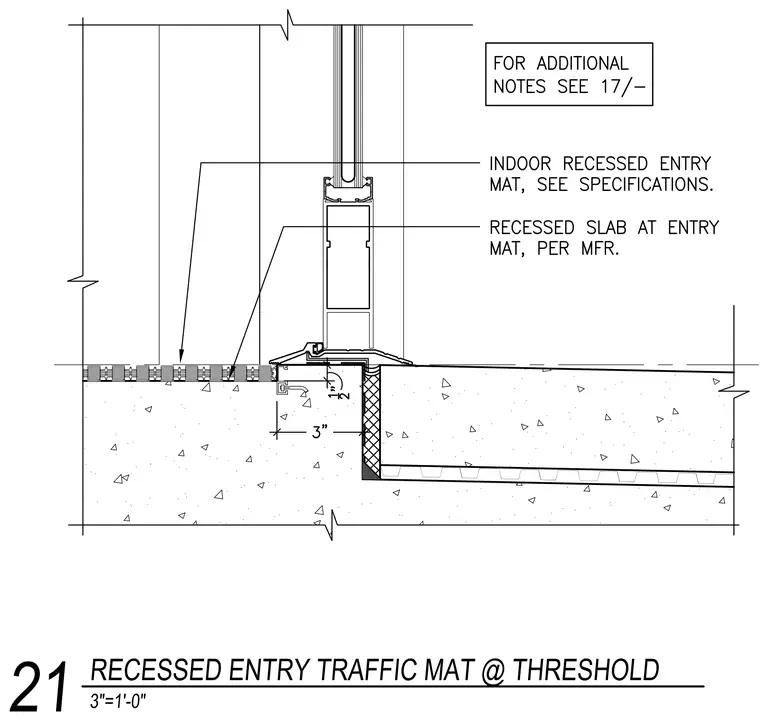

An indoor recessed entry mat is set into a recessed concrete slab with a depressed metal deck per manufacturer specifications. A door threshold frame sits above the mat recess, maintaining a floor transition. Additional notes refer to sheet 17 for coordination.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
