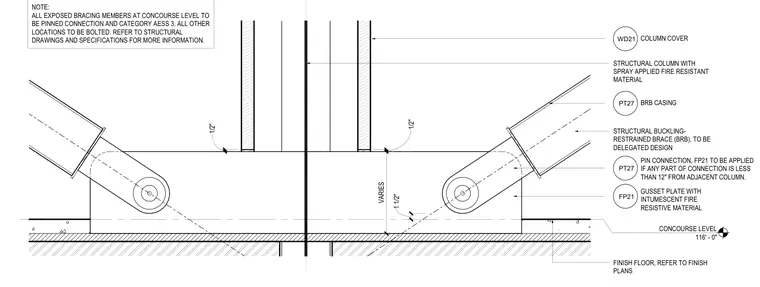

A pinned buckling-restrained brace connection occurs at the concourse level adjacent to a structural column with a column cover. A delegated design structural buckling-restrained brace features a casing and terminates in a pin connection supported by a gusset plate. The structural column is protected with spray-applied fire-resistant material, while the gusset plate is finished with intumescent fire-resistive material applied when the connection is less than twelve inches from the adjacent column. Exposed bracing members at the concourse level are specified as pinned connections meeting architecturally exposed structural steel category three standards. Finish flooring assemblies are coordinated at the base per finish plans.
CONCOURSE LEVEL 116' - 0" 1/2" 1/2" 1 1/2" WD21 STRUCTURAL COLUMN WITH SPRAY APPLIED FIRE RESISTANT MATERIAL NOTE: ALL EXPOSED BRACING MEMBERS AT CONCOURSE LEVEL TO BE PINNED CONNECTION AND CATEGORY AESS 3. ALL OTHER LOCATIONS TO BE BOLTED. REFER TO STRUCTURAL DRAWINGS AND SPECIFICATIONS FOR MORE INFORMATION. BRB CASING PT27 PT27 PIN CONNECTION, FP21 TO BE APPLIED IF ANY PART OF CONNECTION IS LESS THAN 12" FROM ADJACENT COLUMN. GUSSET PLATE WITH INTUMESCENT FIRE RESISTIVE MATERIAL FP21 FINISH FLOOR, REFER TO FINISH PLANS COLUMN COVER VARIES STRUCTURAL BUCKLING- RESTRAINED BRACE (BRB), TO BE DELEGATED DESIGN
