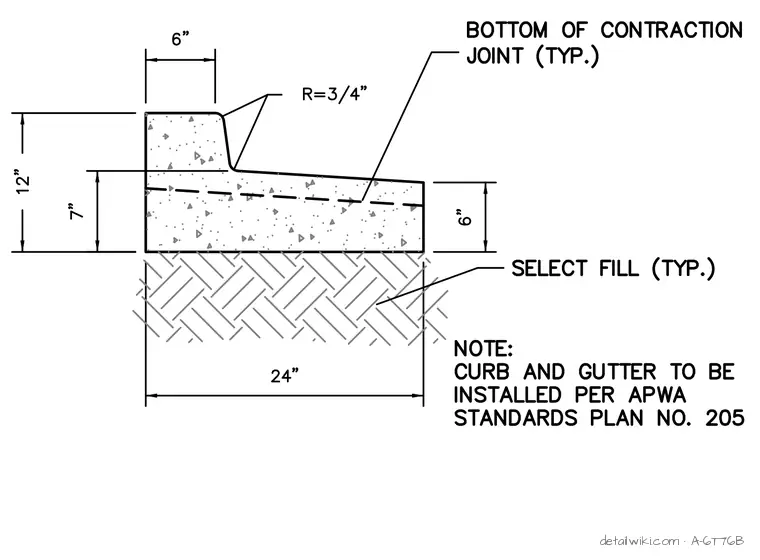

This concrete reverse pan curb and gutter assembly features a total width of 24 inches and a curb height of 12 inches. The gutter pan slopes toward the curb, with a 7-inch height at the curb face and a 6-inch height at the outer edge. A contraction joint is located at a depth of 7 inches from the top of the curb. The curb edges are finished with a 3/4-inch radius. The assembly is supported by select fill and must be installed in accordance with American Public Works Association standards plan number 205.
