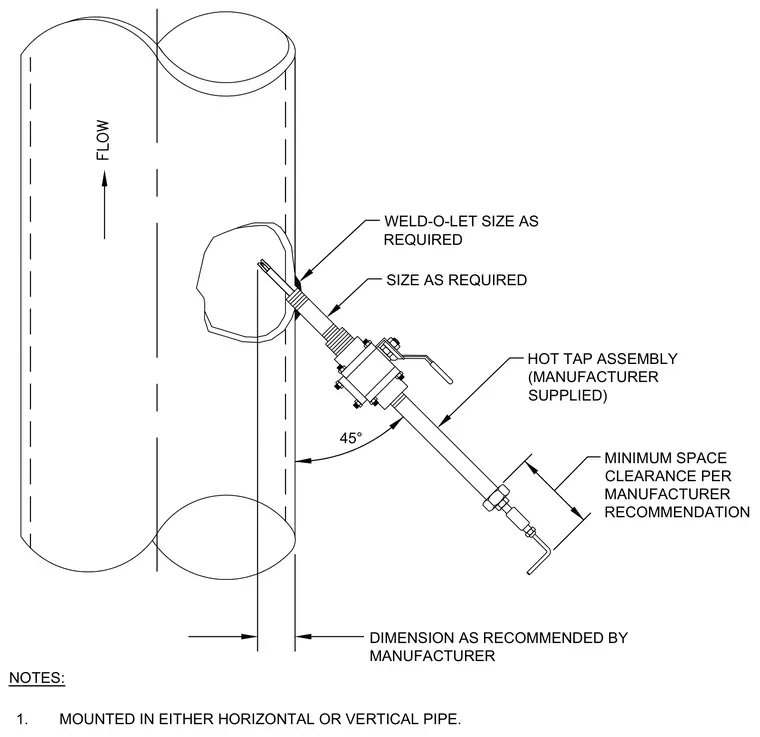

A hot tap assembly connects to a main pipe at a forty-five degree angle using a weld-o-let sized per requirements. The assembly includes a manufacturer-supplied hot tap valve and piping component mounted with specified space clearance. Dimensions for placement and clearances follow manufacturer recommendations. The unit mounts in either horizontal or vertical pipe configurations.
45° NOTES: DIMENSION AS RECOMMENDED BY MANUFACTURER WELD-O-LET SIZE AS REQUIRED SIZE AS REQUIRED HOT TAP ASSEMBLY (MANUFACTURER SUPPLIED) 1. MOUNTED IN EITHER HORIZONTAL OR VERTICAL PIPE. MINIMUM SPACE CLEARANCE PER MANUFACTURER RECOMMENDATION
