The Type 12A exit sign measures six inches wide by four inches tall and features two-inch tall raised lettering with one-thirty-second inch relief. California Grade 2 Braille text is positioned below the main text and is customized for each specific condition. The sign requires a mounting height between forty-eight inches minimum and sixty inches maximum above the finished floor to the centerline of the sign.

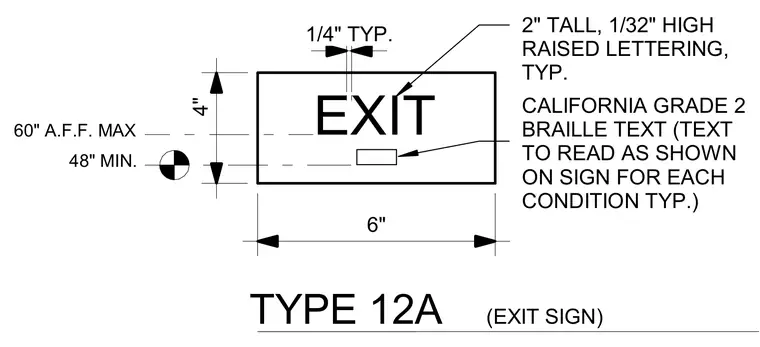

TYPE 12A EXIT 1/4" TYP. 2" TALL, 1/32" HIGH RAISED LETTERING, TYP. (EXIT SIGN) 4" 6" 48" MIN. 60" A.F.F. MAX CALIFORNIA GRADE 2 BRAILLE TEXT (TEXT TO READ AS SHOWN ON SIGN FOR EACH CONDITION TYP.)
