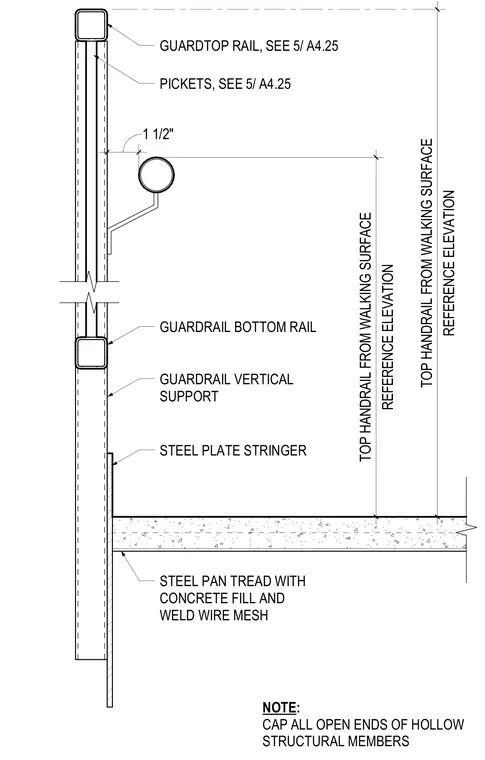

A stair-mounted steel guardrail assembly anchors to a steel plate stringer. The system features a top rail, vertical supports, pickets, and a side-mounted handrail offset by one and one-half inches from the guardrail plane. The vertical support extends down to weld directly to the steel plate stringer adjacent to the concrete-filled steel pan tread with welded wire mesh. All open ends of hollow structural members require end caps.
REFERENCE ELEVATION TOP HANDRAIL FROM WALKING SURFACE REFERENCE ELEVATION TOP HANDRAIL FROM WALKING SURFACE GUARDTOP RAIL, SEE PICKETS, SEE 1 1/2" GUARDRAIL BOTTOM RAIL GUARDRAIL VERTICAL SUPPORT STEEL PLATE STRINGER STEEL PAN TREAD WITH CONCRETE FILL AND WELD WIRE MESH NOTE: CAP ALL OPEN ENDS OF HOLLOW STRUCTURAL MEMBERS 5/ A4.25 5/ A4.25
