Architectural · A-6SRYR

Stainless Steel Wall Guard at PVC Wall Panel

Materials

Steel

Elements

Columns Walls Decks Connections / Plates

Connections

Base Plate / Anchorage

About this detail

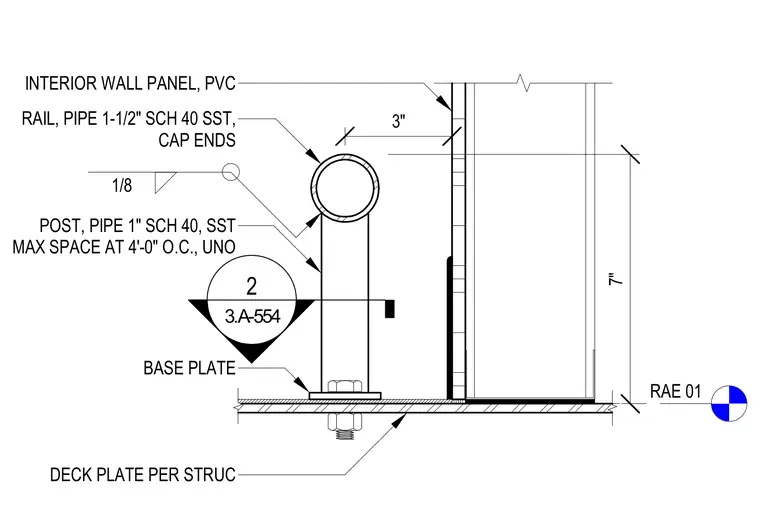

A one-and-a-half-inch schedule forty stainless steel pipe rail with capped ends attaches to a one-inch schedule forty stainless steel pipe post using a one-eighth-inch fillet weld. The post secures to a base plate anchored through a structural deck plate, with posts spaced at a maximum of four feet on center unless noted otherwise. A seven-inch vertical clearance separates the center of the rail from the base, positioned three inches away from an interior PVC wall panel.
