Architectural · A-6S62F

Non-Rated Acoustical Partition - Plywd And Gyp

Materials

Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Bracing Insulation Roof / Floor Openings

About this detail

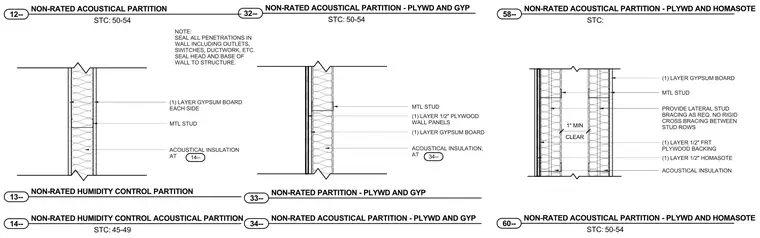

Non-rated acoustical partition assemblies utilize metal studs, acoustical insulation, and multiple layers of gypsum board, 1/2-inch plywood wall panels, fire-retardant treated plywood backing, and 1/2-inch homasote. Lateral stud bracing is required without rigid cross bracing between stud rows, maintaining a 1-inch minimum clear space where applicable. All wall penetrations including outlets, switches, and ductwork, as well as the head and base of the wall, must be sealed to the structure.
