The railing post connects to a standard deck mount base using number ten by five-eighths inch flat head machine bolts, requiring field drilling and countersinking into the post. A cover flange slips over the post to conceal the connection hardware. The deck mount base anchors to the concrete subfloor using three-eighths inch concrete anchors.

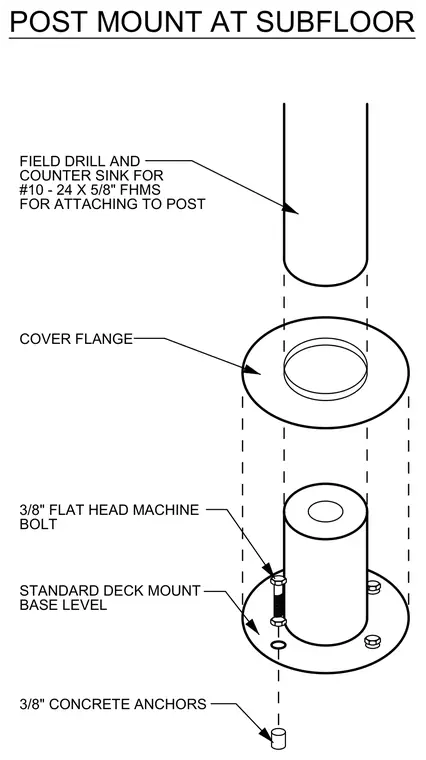

COVER FLANGE 3/8" FLAT HEAD MACHINE BOLT STANDARD DECK MOUNT BASE LEVEL 3/8" CONCRETE ANCHORS FIELD DRILL AND COUNTER SINK FOR #10 - 24 X 5/8" FHMS FOR ATTACHING TO POST POST MOUNT AT SUBFLOOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
