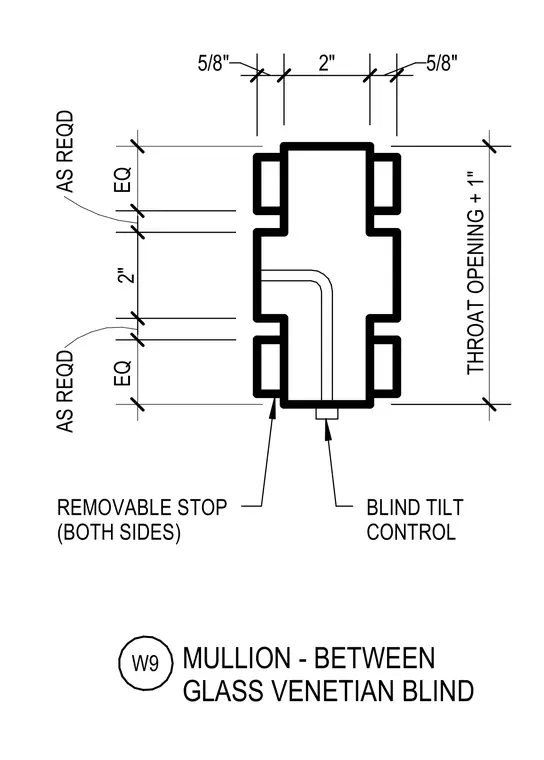

The assembly features a W9 mullion profile situated between glass venetian blinds with removable stops installed on both sides. A blind tilt control is provided at the bottom as required, with equal spacing configurations throughout. Dimensions indicate a two-inch clear opening width flanked by five-eighths inch clearances and a throat opening height defined as throat opening plus one inch. Removable stops allow access to the interior components.
5/8" 2" 5/8" 2" THROAT OPENING + 1" MULLION - BETWEEN GLASS VENETIAN BLIND W9 REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL AS REQD AS REQD EQ EQ
